Green Self Leveling Track Scissor Type Aerial Work Platform with 3398kg Weight Capacity

Name: Green Self Leveling Track Scissor Type Aerial Work Platform with 3398kg Weight Capacity
Brand: Domestic
Price: 1 USD

Wholesale Green Self Leveling Track Scissor Type Aerial Work Platform with 3398kg Weight Capacity from china suppliers

Brand Name : Domestic

Model Number : Z08TSL/Z10TSL/Z12TSL

Place of Origin : Changsha，Hunan，China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100pcs/month

Delivery Time : 7days

Packaging Details : Standard export package

Color : Green

Drive Mode. : 4*2

Weight : 3398kg

Battery : 8x6V/200Ah

Contact Now

Product Decription

The platform height of the liquid driven scissor type aerial work platform is lower than that of the arm type aerial work platform, reaching up to 5.8-13.8 meters. Powered by batteries, more environmentally friendly. Due to the absence of exhaust emissions or loud noise during operation, they are very suitable for indoor operation.

Product Picture
Green Self Leveling Track Scissor Type Aerial Work Platform with 3398kg Weight Capacity

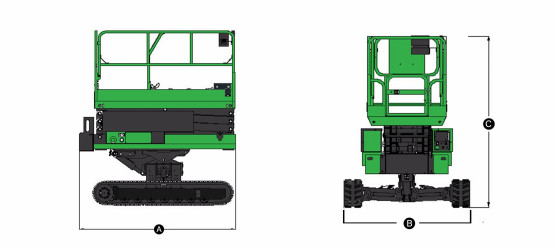

Model	Z08TSL	Z10TSL	Z12TSL
Size
Maximum working height	10.3m	12m	14m
Maximum platform height	8.3m	10m	12m
Platform size	2.281.1361.26m	2.281.1361.26m	2.28*1.136X1.26m
Vehicle length	2.53m	2.53m	2.53m
Vehicle width	1.37m	1.37m	1.37m
Overall height (unfolded fence)	2.835m	2.965m	3.095m
Overall height (folded national fence)	2.327m	2.457m	2.587m
Platform horizontal extension	0.9m	0.9m	0.9m
wheelbase	1.8m	1.8m	1.8m
Whole machine weight	3398kg	3698kg	3998kg
Performance
Safe working load	250kg	250kg	250kg
Extend platform safety workload	113.3kg	113.3kg	113.3kg
Maximum number of employees	2	2	2
High speed driving speed	2-3km/h	2-3km/h	2-3km/h
Low speed driving speed	0.8-1.2km/h	0.8-1.2km/h	0.8-1.2km/h
The boldest slope ability (retracted)	36%	36%	36%
Lifting speed - lifting	6-8m/min	6-8m/min	6-8m/min
Lifting speed - descent	10-12m/min	10-12m/min	10-12m/min
Vertical leveling angle - front side	±1 5 °	±15°	±1 5 °
Vertical leveling angle - rear side	±20°	±20°	±20°
Horizontal leveling angle	±17°	±17°	±17°
Hydralic System
Hydraulic oil capacity	32L	32L	32L
Power
Battery	8x6V/200Ah	8x6V/200Ah	8x6V/200Ah
Charger	30A	30A	30A
